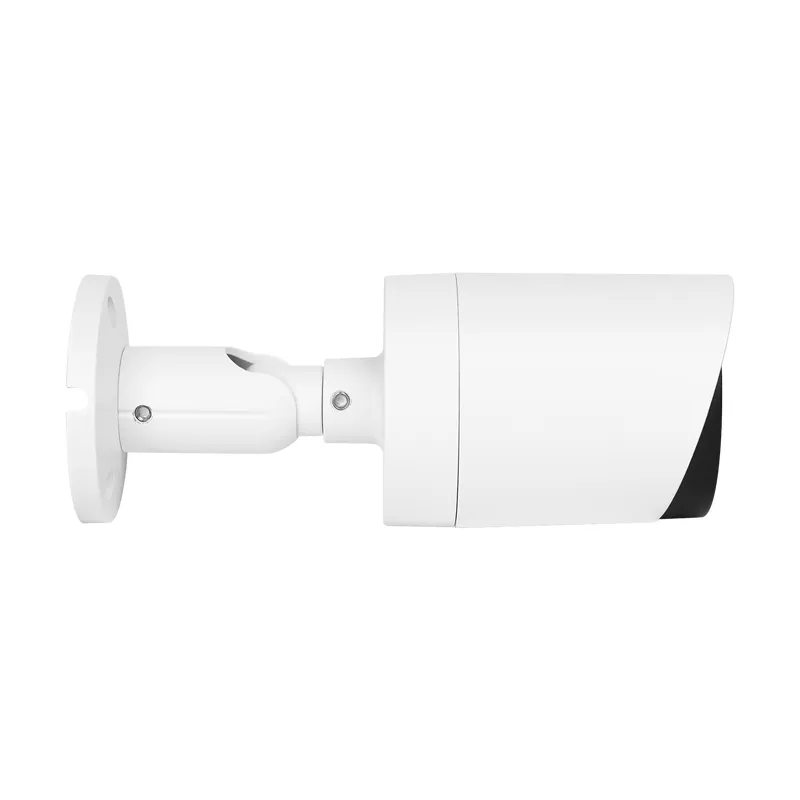

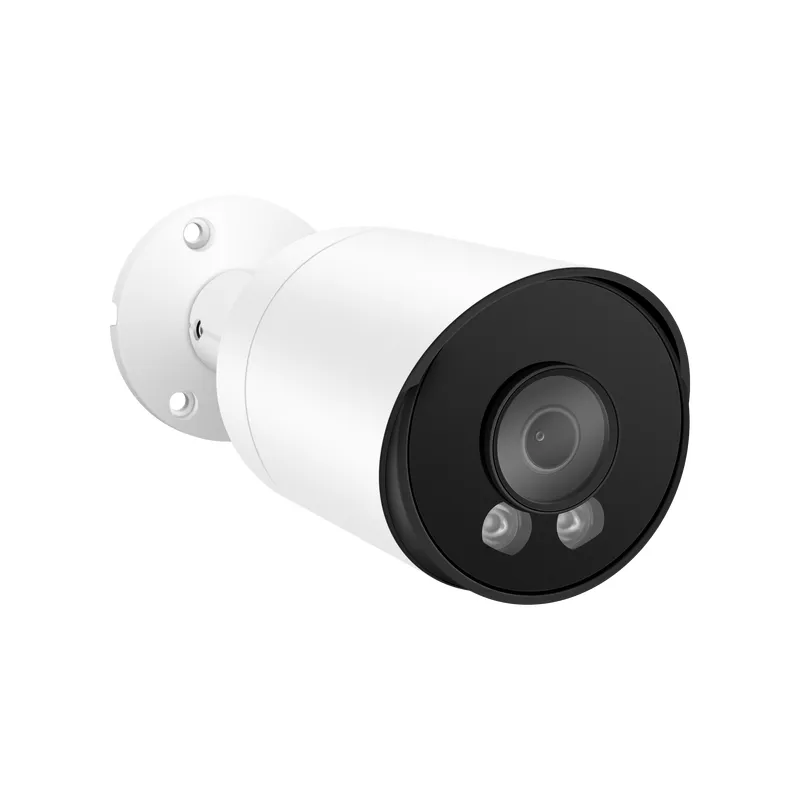

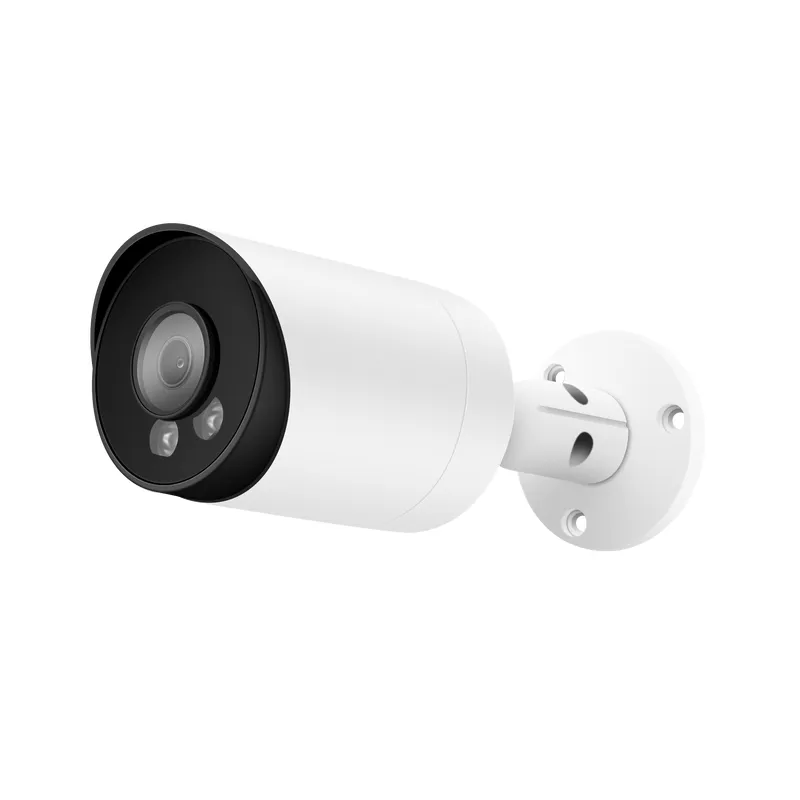

HZX-ARRQ211HD2MP-WDR

Features:

● 4-in-1 HDTVI/ HDCVI / AHD / CVBS optional output

● Full HD resolution 1920 x 1080P with Sony CMOS sensor

● Ultra low illumination 0.001Lux

● Up to 300M long distance and high speed real time monitoring

● OSD menu control over coaxial cable (UTC)

● AWB, AGC, BLC, 2D/3D-DNR

● Multiple exposure WDR and Digital overlap WDR，up to 120DB

● Slow-Shutter, Sens up, Defog

● Motion Detection, Privacy Mask, Mirror

● Lightning protection

● Strong water-proof housing, IP67

● 2pcs IR Array Leds, IR distance 20-30 meters

● HD 2.8 /3.6/6mm Fixed lens optional

Specifications:

Model	HZX-ARRQ211HD2MP-WDR
Camera
Image Sensor	1/2.8"Sony IMX307 CMOS
Chipset	SONY IMX307+NVP2450H
Effective Pixels	1920(H)×1080 (V)
Video Resolution	1080P@25/30fps
Electronic Shutter	AUTO, 1/25 - 1/50,000s
Min. Illumination	0.001Lux@F1.2(AGC ON), 0Lux IR on
Video System	PAL/NTSC
Video Output	1 -BNC, HDCVI / HDTVI/AHD/CVBS , adjustable
Video Switch	OSD button in Cable
Day/Night	Auto(ICR) / Color / B/W
WDR	Multiple exposure WDR and Digital overlap WDR，up to 120DB
White Balance	AWB/ATW/Indoor/Outdoor/Manual
AGC/BLC	Support
DNR	2D 3D NR
OSD Menu	Multiple languages OSD menu control up the coaxial cable (UTC)
Other	Sens-up,Defog, Motion, Privacy Mask, Mirror, Flip
Lens
Focal length	2.8 /3.6/6mm Fixed lens optional
IR Led
IR Led	2pcs IR Array Leds
IR Distance	20-30 M
General
Power Supply	DC12 V ± 10%
Power Consumption	< 5 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH
