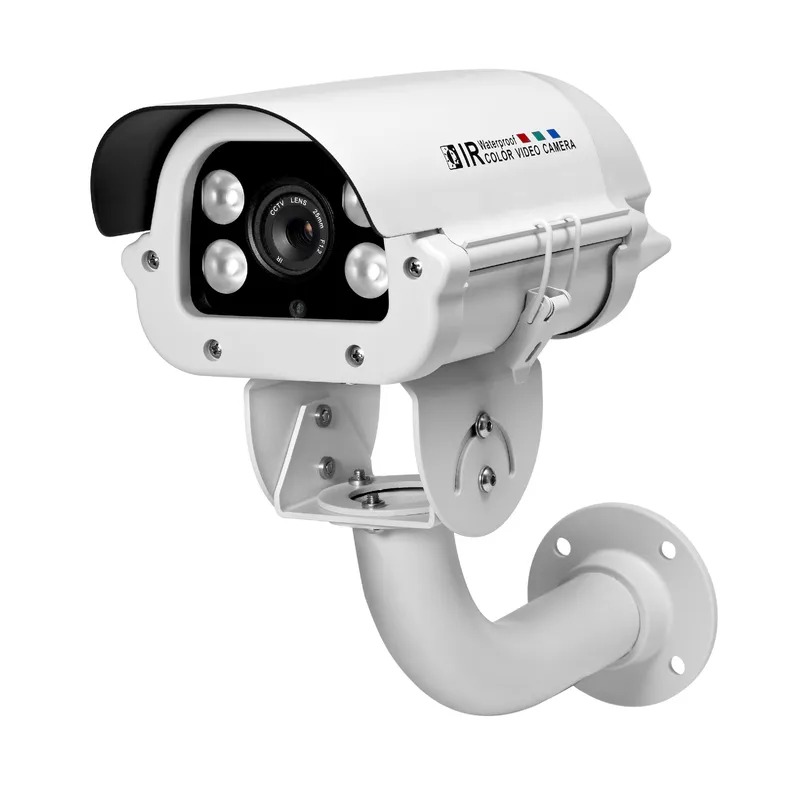

HZX-IPARR35-6MP

Features:

●1/2.8" Sony CMOS sensor

● 6MP HD resolution 3072 x 2048 output

● low illumination 0.01Lux

● Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT

● D-WDR, Motion Detection, Privacy Mask, Mirror, Flip

● RTSP and Onvif 17.06 compatible

● H.265/H.264 dual-stream media server

● Easy-to-use P2P Cloud service

● Multi web browser, PC Client, mobile APP remote access

● Optional customization Lens/Audio/POE, etc.

● Lightning protection 4000V

● Strong water-proof housing, IP66

● IR distance 70-80 meters

● HD 6-22mm Manual Len

Specifications:

Model	HZX-IPARR35-6MP
Camera
Image Sensor	1/2.8" Sony CMOS Sensor
Effective Pixels	3072(H) ×2048 (V)
Electronic Shutter	AUTO, 1/25s ~ 1/ 100000s
Min. Illumination	0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night	Auto/Color/(B/W)/Timing
WDR	Digital WDR
White Balance	Auto
Other	AGC,2/3 DNR,Motion Detection, Privacy Mask, Mirror, Flip
Encode
Video Standard	H.265/H.264
Video Resolution	Main Stream: 25fps@6MP(3072x2048)/5MP(2592x1944),30fps@4MP/3MP/ 1080P/720P Sub stream: 30fps@D1/VGA/360P/CIF, etc.
	Sub stream: D1/VGA(640x480)/360P/QVGA@25fps
Video Bitrates	64Kbps - 8Mbps, VBR/CBR
Audio Standard	G.711-u/G.711-a
IR Led
IR Led	4 White Array IR Led
IR Distance	70-80 meters
Lens
Focal length	6-22mm Manual lens
POE	YES
Network Services
Protocol	RTSP/FTP/DHCP/DDNS/NTP/SMTP/NFS
P2P	Yes
Web	IE , firefox 32bit ESR
Media	CMS, Android, IOS
ONVIF	17.06 compatible
General
Network Port	1-RJ45, 100Mbps, POE optional
Power Supply	12 VDC ± 10%
Power Consumption	< 5 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH
