Specifications:

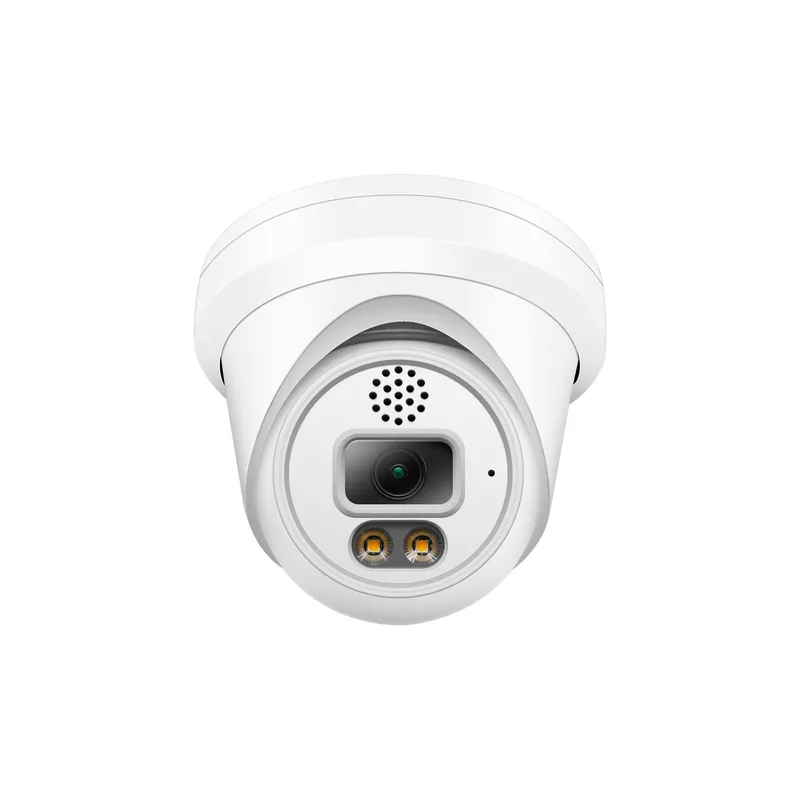

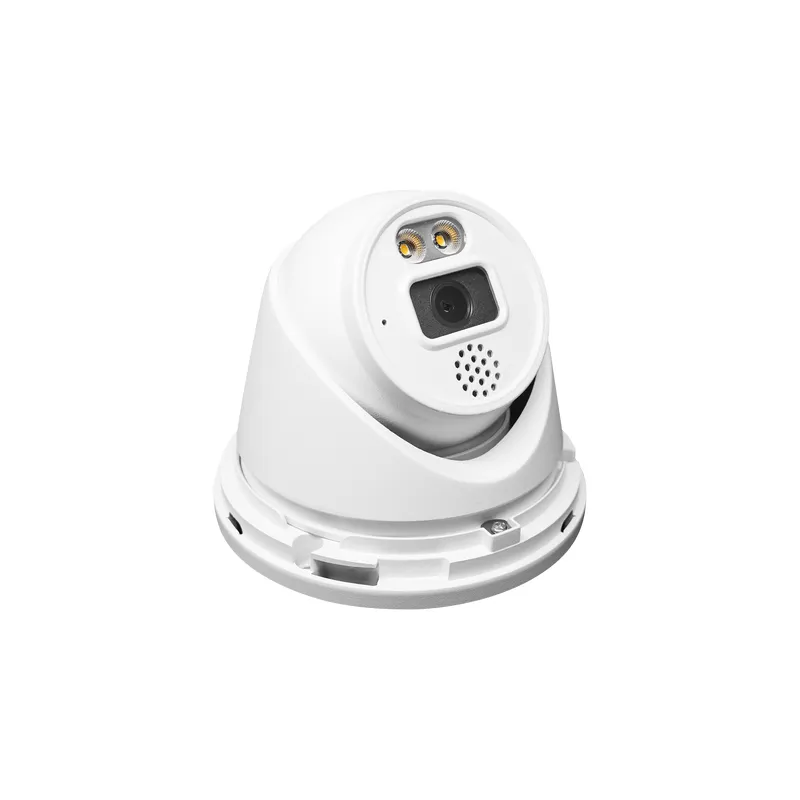

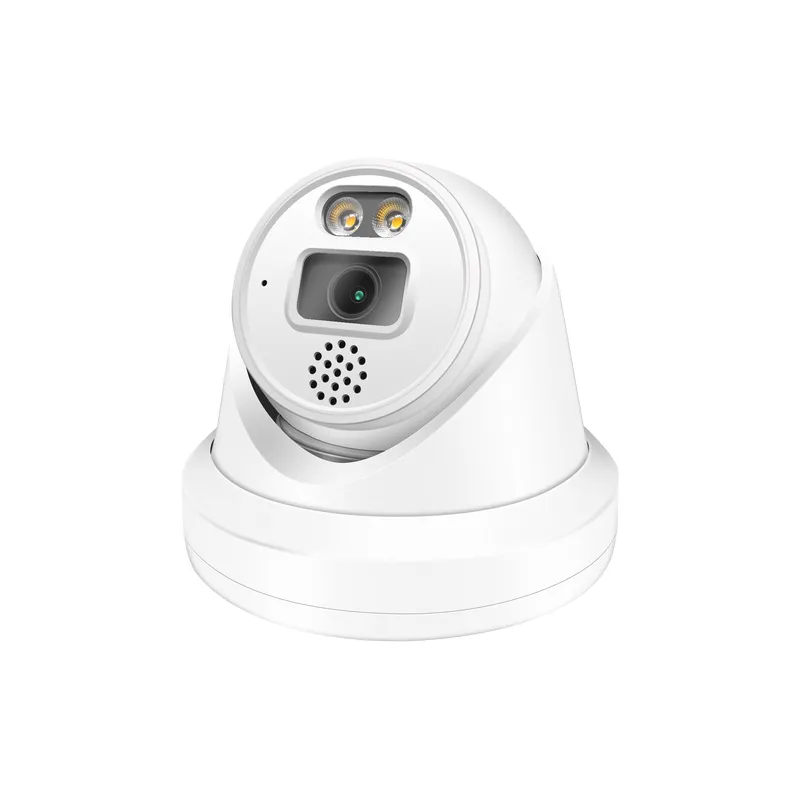

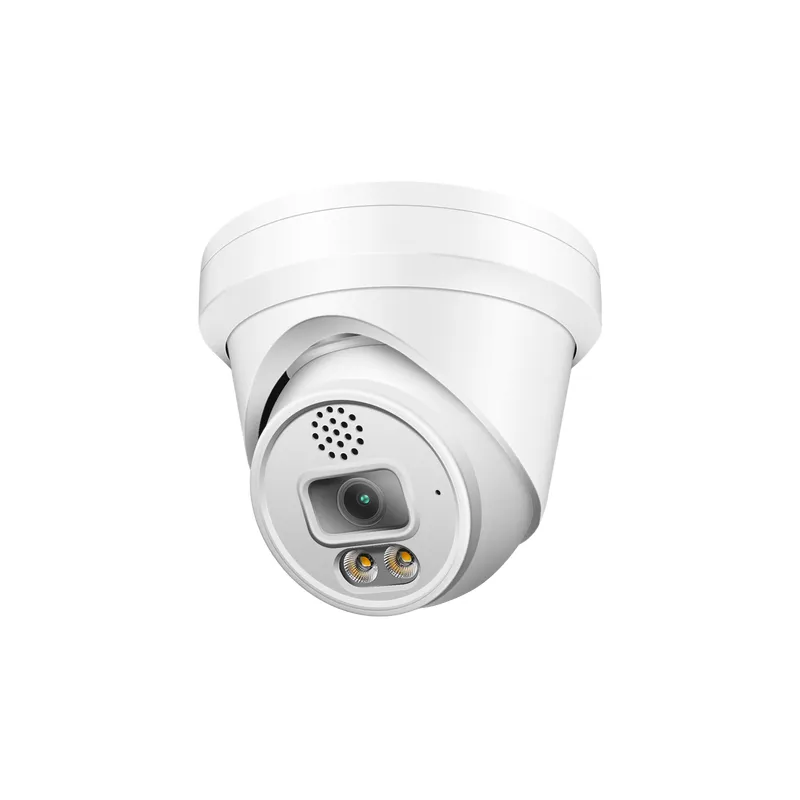

Model | HZX-IPB58-6MP-DL |
Camera | |
Image Sensor | SSC30KQ+IMX335 |
Effective Pixels | 3072 (H) × 2048 (V) |
Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
Day/Night | Auto/Color/(B/W)/Timing |
WDR | Digital WDR |
White Balance | Auto/Indoor/Outdoor |
BLC | Support |
DNR | 2D/3D DNR |
Other | Human body and Vehicle detection , Motion Detection, Privacy Mask, Mirror, flip |
Encode | |
Embedded Solution | SSC30KQ |
Video Standard | H.264/H.265 |
Video Resolution | Main Stream:25fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. |
Video Bitrates | 512Kbps - 10Mbps, VBR/CBR |
Audio Standard | G.711-u/G.711-a/AAC |
OSD Overlay | Title and Time overlay |
LedS | |
Leds | 2PCS dual Lights |
IR distance | 25-30M |
Warm Light Distance | 25-30 M |
Lens | |
Focal length | HD 2.8mm F1.6 lens |
Functions | |
Two way audio, Built in Microphone and Speaker ,with SD card slot(support up to 256GB SD card) | |
Network Services | |
Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
P2P | Yes |
Web | IE , Firefox,Edge, Google Chrome etc. |
Media | CMS, Android, IOS |
ONVIF | 17.06 compatible |
General | |
Network Port | 1-RJ45, 100Mbps |
Power Supply | POE ,12 VDC ± 10% |
Power Consumption | < 8 W |
Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
