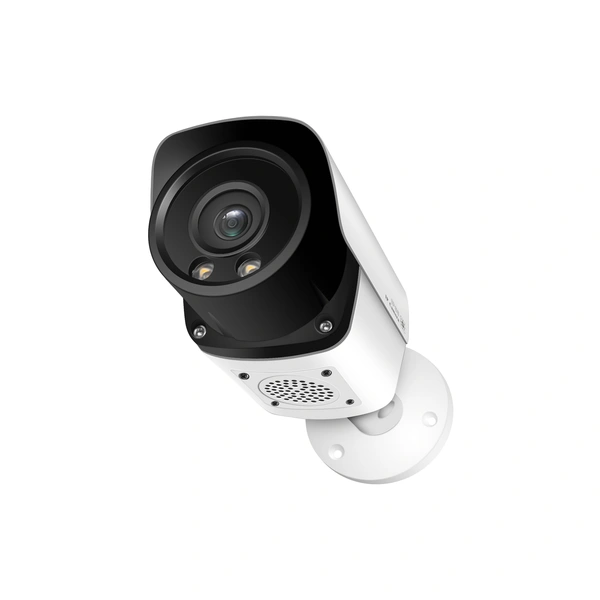

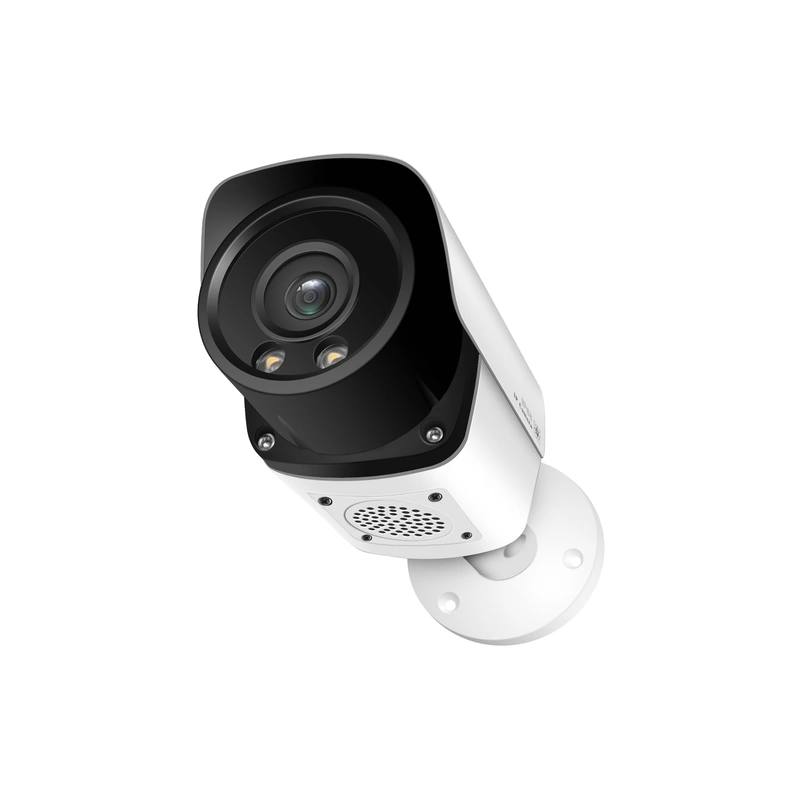

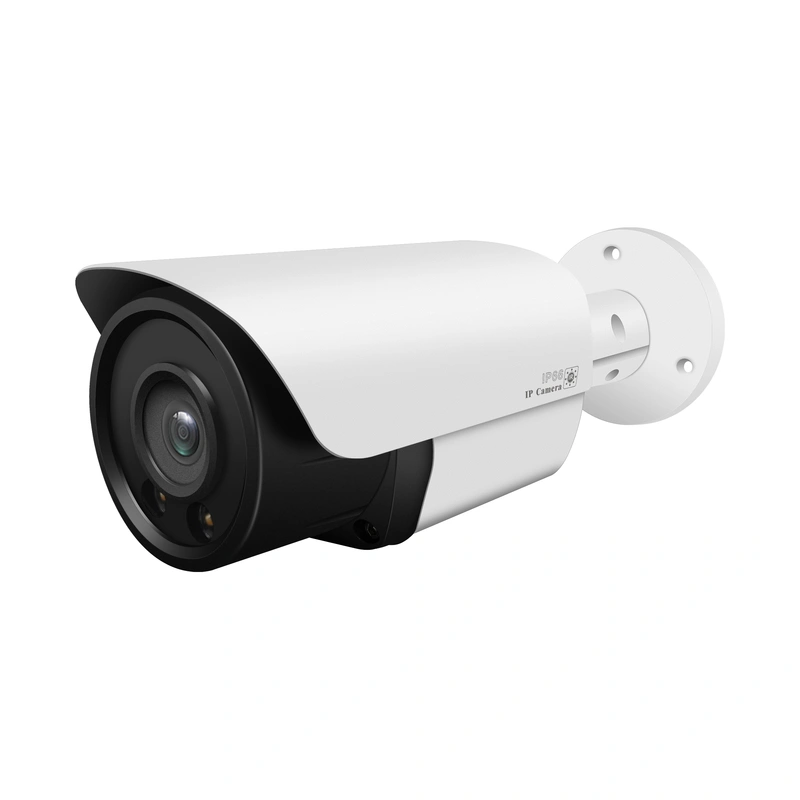

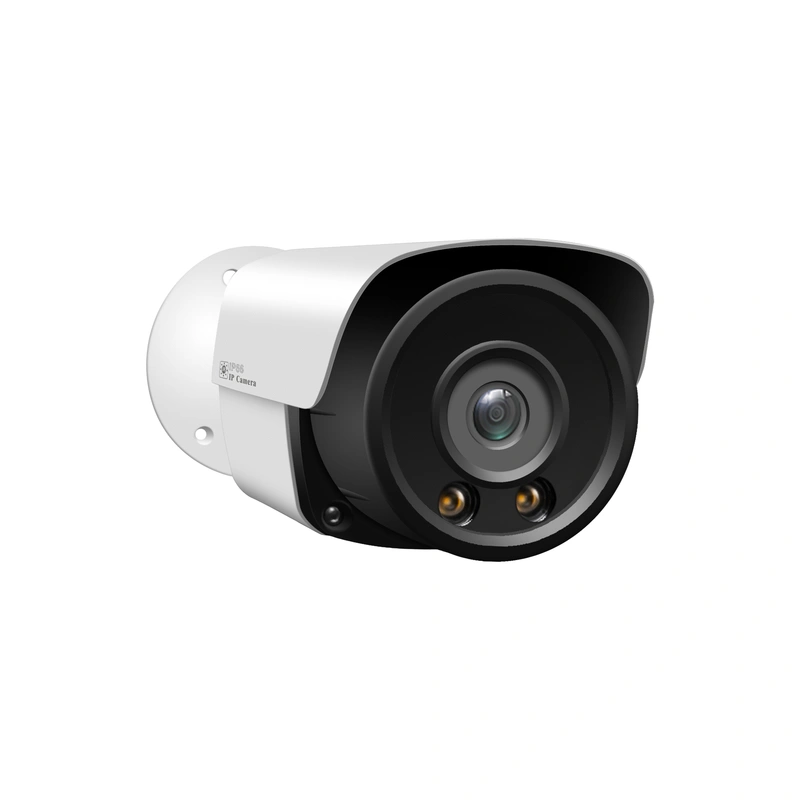

HZX-IPQ307-4K-DL
HZX-IPQ307-4K-DL
HZX-IPQ307-4K-DL
  • HZX-IPQ307-4K-DL
  • HZX-IPQ307-4K-DL
  • HZX-IPQ307-4K-DL

HZX-IPQ307-4K-DL

Features:

●1/2.8" Sony CMOS sensor

● 4K resolution 3840 x 2160P

● Low illumination 0.01Lux

● Day/ Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT

● D-WDR, Motion Detection, Privacy Mask, Mirror

● RTSP and Onvif 17.06 compatible

● H.265/ H.264 dual-stream media server

● Easy-to-use P2P Cloud service

● Multi web browser, PC Client, mobile APP remote access

● Two way audio, Built in Microphone and Speaker ,with SD card slot(support up to 256GB SD card)

● Support audio alarm to warn intruders off

● Support warm light on when detect human body and vehicle

● Lightning protection 4000V

● Strong water-proof housing, IP67

● 2PCS dual Lights, IR distance:25-30M,warm light distance:25-30M

● HD 2.8mm F1.6     lens

Description

Specifications:

Model

HZX-IPQ307-4K-DL

Camera

Image Sensor

1/2.8" SONY IMX415 CMOS

Effective Pixels

3840 (H) × 2160 (V)

Electronic Shutter

AUTO, 1/25s ~ 1/ 100000s

Min. Illumination

0.01Lux@F1.2(AGC ON), 0Lux IR on

Day/ Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/ Indoor/Outdoor

BLC

Support

DNR

2D/3D DNR

Other

Human body and Vehicle detection , Motion Detection, Privacy Mask, Mirror, flip

Encode

Embedded Solution

SSC338Q

Video Standard

H.264/H.265

Video Resolution

Main Stream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/ 3MP/1080P/720P,etc.

Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.

Video Bitrates

512Kbps - 12Mbps, VBR/CBR

Audio Standard

G.711-u/G.711-a

OSD Overlay

Title and Time overlay

LedS

Leds

2PCS dual Lights

IR distance

25-30M

Warm Light Distance

25-30 M

Lens

Focal length

HD 2.8mm F1.6 lens

Functions

Two way audio, Built in Microphone and Speaker ,with SD card slot(support up to 256GB SD card)

Network Services

Protocol

HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.

P2P

Yes

Web

IE , Firefox, Edge, Google Chrome etc.

Media

CMS, AndroidIOS

ONVIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps

Power Supply

POE ,12 VDC ± 10%

Power Consumption

< 8 W

Operating Temp.

-30-(+60), 10%-90%RH
