Specifications:

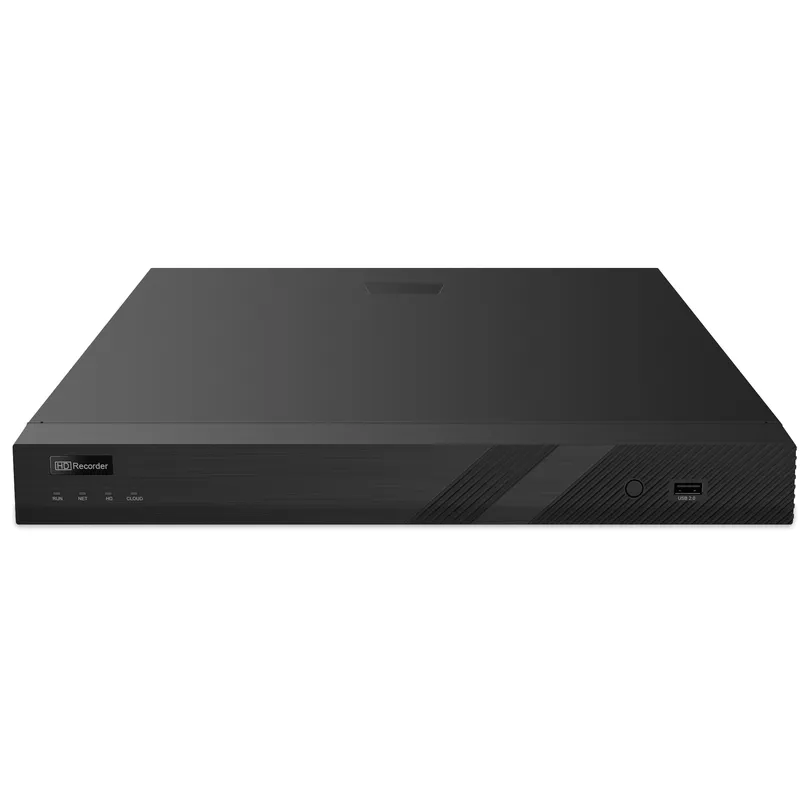

| Model | HZX-N2108-P8-V5 | |
| System | OS | Embedded Linux |
| Video | Network Input | 8CH IPC input |
| Network Input Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF | |
| Output | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 | |
| Screen Display Mode | 1/4 /6/8/9 | |
| Compression | H.265S /H.265+ / H.265 / H.264 | |
| Audio | Network Input | 8 CH IPC audio input |
| Local Input | RCA × 1 (for two-way audio) | |
| Local Output | RCA × 1 | |
| Compression | G.711(U/A) | |
| Record | Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF |
| Frame Rate | NTSC:30fps; PAL:25fps | |
| Playback | Simultaneous Playback | Max. 8 CH |
| Search | Time slice / time / event / tag / smart search | |
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |
| Function | Play, pause, FF, FB, digital zoom, etc . | |
| Decoding Capability | Live View/ Playback | 1 ×8MP@30fps; 6 × 1080P@30fps |
| Alarm | Mode | Manual, sensor, motion, exception, smart events |
| Input | Supports IPC alarm input | |
| Output | Supports IPC alarm output | |
| Triggering | Record, snap, preset, e-mail, etc . | |
| Network | Interface | RJ 45 × 1 (10/100/1000Mbps) |
| Protocol | TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPs, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP, ONVIF | |
| Incoming/ Outgoing Bandwidth | 80/80 (Mbps) | |
| *When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR. | ||
| Client Connection | Max. 64 users access | |
| Face | Face Detection Performance (AI by IPC) | 8 CH |
| Face Detection Performance (AI by Device) | 2 CH | |
| Face Match Performance | No | |
| Statistical Graph of Information | Bar graph | |
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | |
| Video Structure Analysis | Human/Vehicle Classification (AI by IPC) | 8 CH |
| Human/Vehicle Classification (AI by Device) | 2 CH | |
| Human/Vehicle Attribute Analysis | Yes (AI by IPC) | |
| Other Functions | Fisheye | Supports fisheye dewarping via Web Client and mobile APP |
| Plate Recognition (AI by IPC) | Yes | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD Interface | SATA3.0 × 1, max 10T |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |
| Port | USB | USB 2.0 × 2 |
| Remote Controller | Optional | |
| PoE | PoE Ports | 100M RJ45 × 8 |
| Standards | IEEE802.3AF/AT | |
| Output Power | ≤ 72W | |
| Others | Power Supply | DC 48V/1.8A |
| Consumption | ≤ 10W ( without HDD ) | |
| Dimensions (mm) | 300 × 249 × 45( W × D × H ) | |
| Working Environment | -10 -50 °C, 10% - 90% humidity | |
| Certificate | CE, FCC | |
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | |
