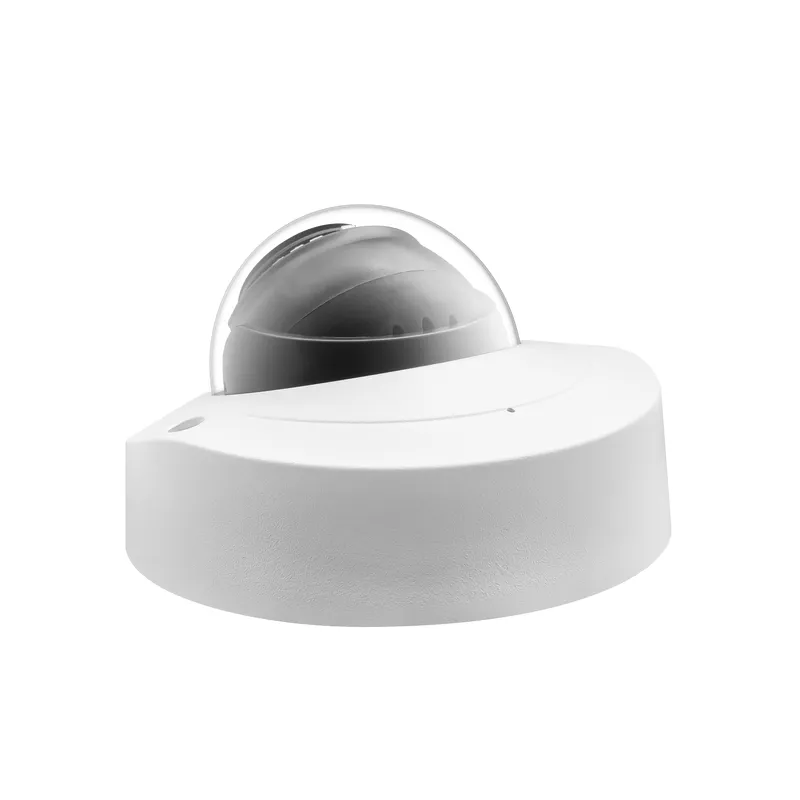

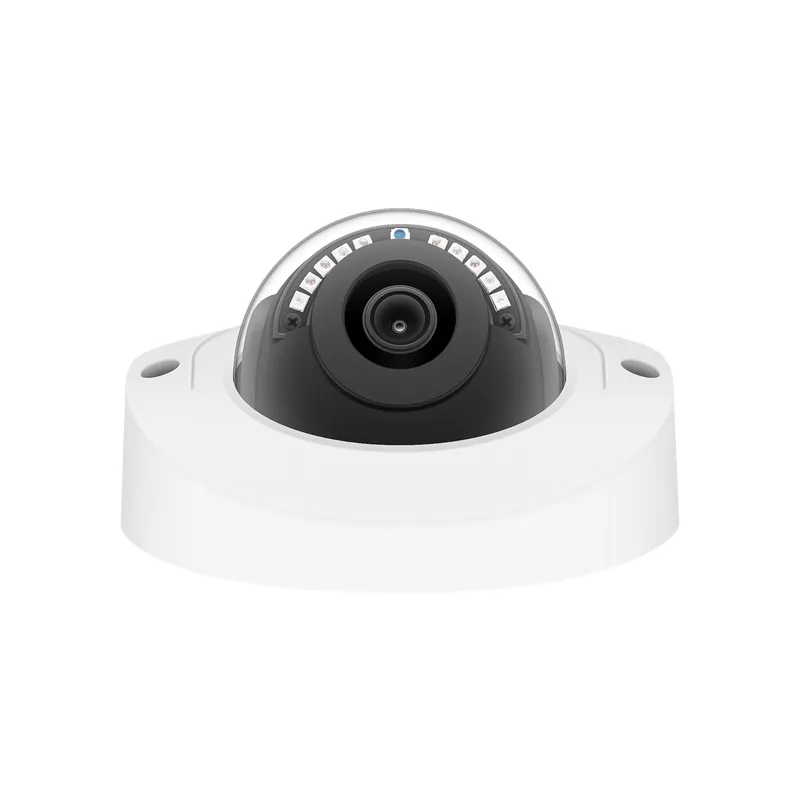

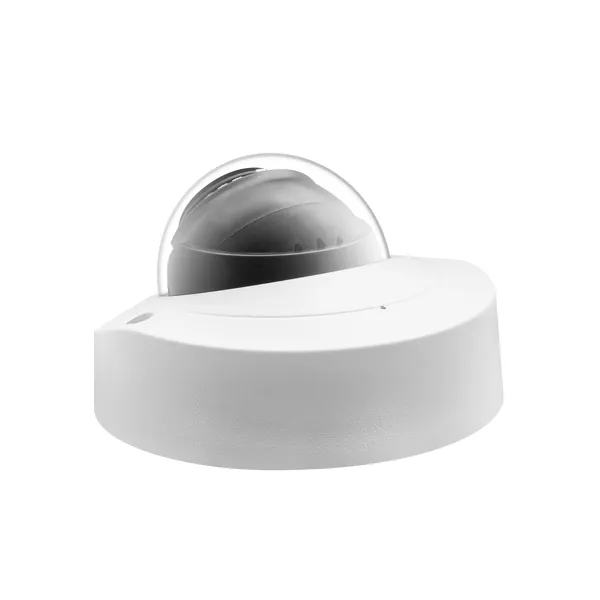

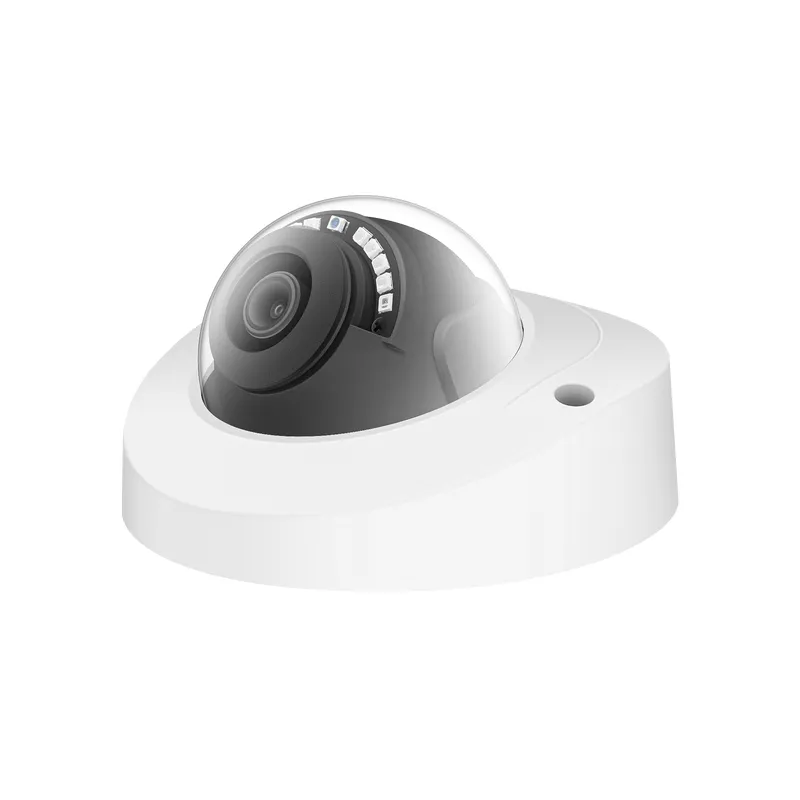

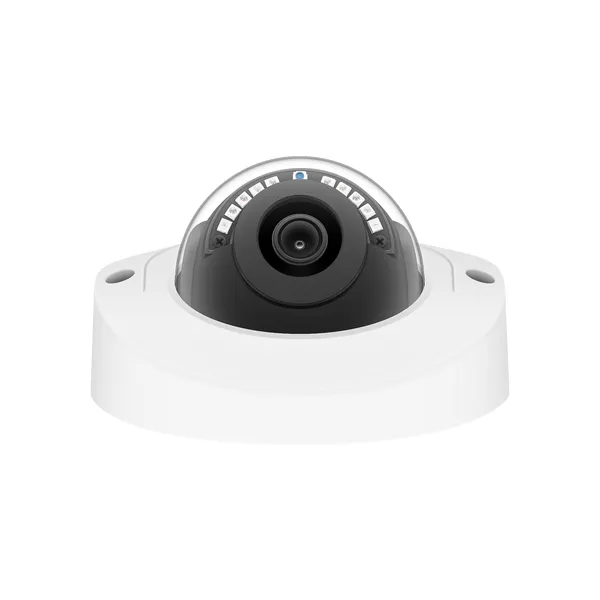

HZX-IPB69-2MP
HZX-IPB69-2MP
HZX-IPB69-2MP
  • HZX-IPB69-2MP
  • HZX-IPB69-2MP
  • HZX-IPB69-2MP

HZX-IPB69-2MP

Features:

●1/2.8" Sony IMX307 CMOS sensor

● Full HD resolution 1920 x 1080P

● Ultra low illumination 0.001Lux

● Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT

● D-WDR, Motion Detection, Privacy Mask, Mirror

● RTSP and Onvif 17.06 compatible

● H.265/H.264 dual-stream media server

● Easy-to-use P2P Cloud service

● Multi web browser, PC Client, mobile APP remote access

● Internal Microphone, reset button optional

● RJ45 100mbps network port, IEEE802.3af PoE

● Lightning protection 4000V

● Strong water-proof housing, IP66

● 10PCS SMD Array IR Led , IR distance:15M

● HD 3.6mmfixed lens

Description

Specifications:

Model

HZX-IPB69-2MP

Camera

Image Sensor

1/2.8" SONY IMX307 CMOS

Effective Pixels

1920 (H) x 1080 (V)

Electronic Shutter

AUTO, 1/25s ~ 1/ 100000s

Min. Illumination

0.001Lux@F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR/HDR(>120dB)

White Balance

Auto/Indoor/Outdoor

BLC

Support

DNR

2D/3D DNR

Other

Human body detection,Motion Detection, Privacy Mask, Mirror, flip

Encode

Video Standard

H.264/H.265

Video Resolution

Main stream: 1080P@30fps , 720P@30fps

Sub stream: D1/VGA/360P@30fps

Video Bitrates

32Kbps - 5Mbps, VBR/CBR

Audio Standard

G.711-u/G.711-a

OSD Overlay

Title and Time overlay

Leds

Leds

10PCS SMD Array IR Led

Light Distance

15 M

Lens

Focal length

3.6mm fixed lens

Optional Functions

Audio

Network Services

Protocol

HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.

P2P

Yes

Web

IE , Firefox, etc.

Media

CMS, Android, IOS

ONVIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps,

Power Supply

IEEE802.3af PoE, 12 VDC ± 10%

Power Consumption

< 8 W

Operating Temp.

-30-(+60), 10%-90%RH
