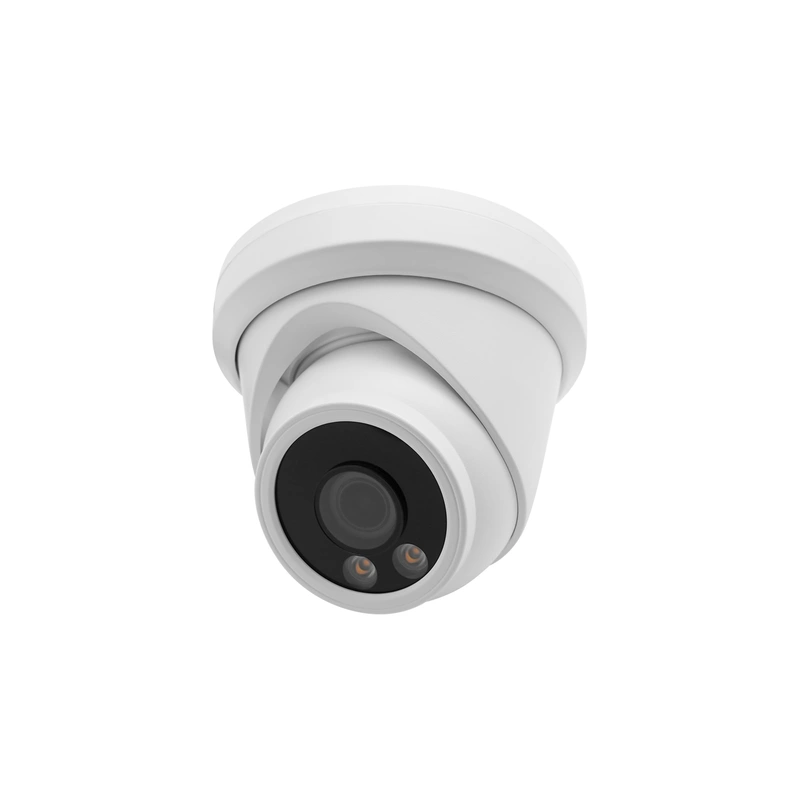

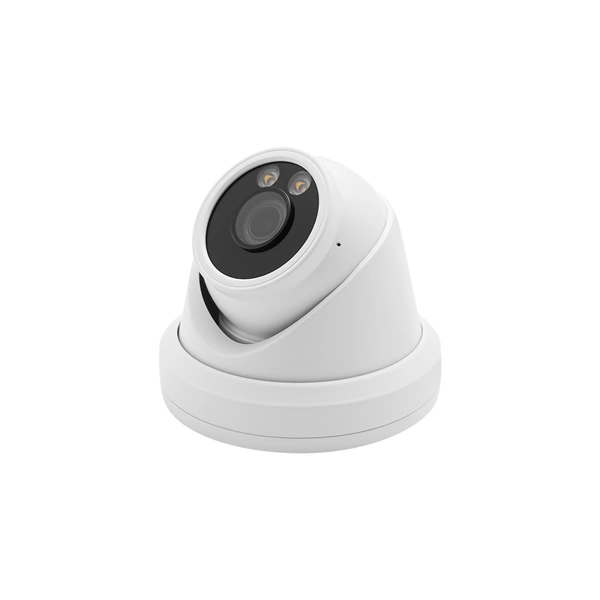

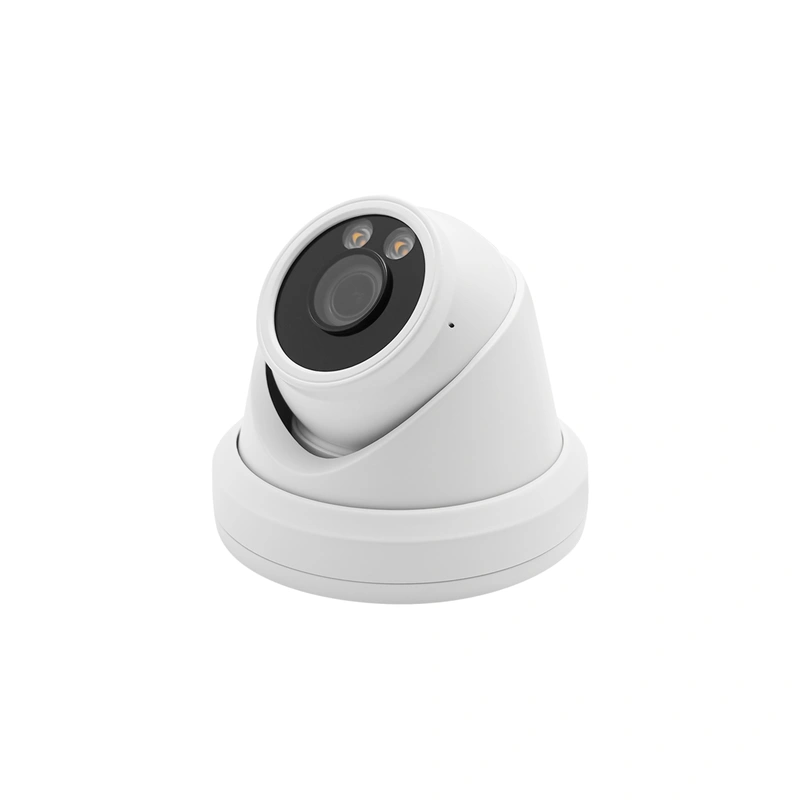

Model | HZX-IPARRB97-4K |
Camera | |
Image Sensor | 1/2.8" SONY IMX415 CMOS |
Effective Pixels | 3840 (H) × 2160 (V) |
Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
Day/Night | Auto/Color/(B/W)/Timing |
WDR | Digital WDR |
White Balance | Auto/Indoor/Outdoor |
BLC | Support |
DNR | 2D/3D DNR |
Light Control | Auto/Manual, Mode switch, Brightness level, OFF, Light ON Illumination |
License Plate Mode | Yes |
Other | Multi-lines OSD, Custom Title, Privacy Mask, Flip |
Encode | |
Embedded Solution | Mstar 338Q |
Video Standard | H.264/H.265/H.265+ |
Video Resolution | Main Stream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. |
Video Bitrates | 512Kbps - 12Mbps, VBR/CBR |
Audio Standard | G.711-u/G.711-a |
OSD Overlay | Title and Time overlay |
Built-in Mic | Optional |
Smart Detection | |
Motion Detection | Support |
Target Detection | Human and Vehicle Detection |
LEDs | |
Leds | 2pcs array LED |
Light Distance | 20-30M |
Lens | |
Focal length | 2.1MM |
Language | |
English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian. | |
Network Services | |
Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
P2P | Yes |
Web | IE, Firefox, Chrome, Edge, Safari, etc. |
Media | CMS, Android, IOS |
ONVIF | 17.06 compatible |
General | |
Network Port | 1-RJ45, 100Mbps |
Power Supply | POE ,12 VDC ± 10% |
POE | 802.3af/at 48V |
Power Consumption | < 8 W |
Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
