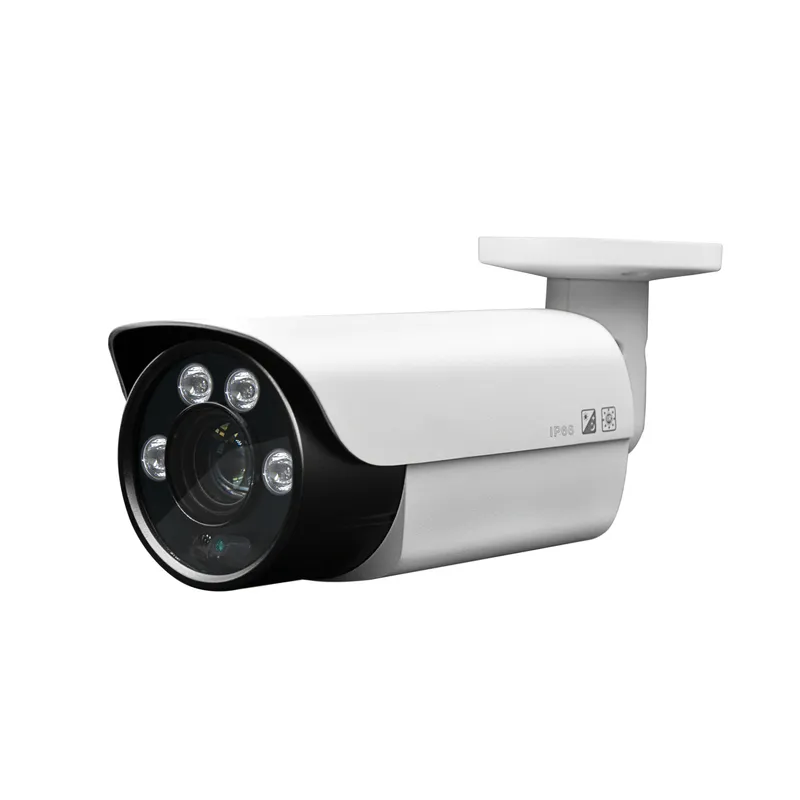

70-80Meters Long IR distance 8MP@30fps 4K UHD Bullet IP camera

HZX-IPARRQ86-4K-HE

Features:

  •  1/2.8" Sony CMOS sensor

  •  4K resolution 3840 x 2160P

  •  Low illumination 0.01Lux

  •  Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT

  •  D-WDR,Mirror, rotate, Defogging

  •  Multiply Style OSD Overlay,Motion Detection, Privacy Mask

  •  RTSP and Onvif 17.06 compatible with many third-party NVR

  •  H.264/H.265 dual-stream media server

  •  Easy-to-use P2P Cloud service

  •  Support user authentication, video data encryption

  •  Support Alarm Snapshot to Email and FTP

  •  Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access

  •  RJ45 100mbps network port, IEEE802.3af PoE

  •  Lightning protection 4000V

  •  Strong water-proof housing, IP67

  •  4pcs IR Array Leds, IR distance 70-80 meters

  •  HD 2.7-13.5mm manual varifocal lens

  •  Built in Microphone and SD card slot optional

Description

Specifications:

Model

HZX-IPARRQ86-4K-HE

Camera

Image Sensor

1/2.8" Sony CMOS

Effective Pixels

8 megapixels

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.01Lux@F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

BLC /HLC

Support

DNR

2D/3D DNR

License Plate Mode

Yes

Other

Human body and Vehicle detection,AGC,Motion Detection,Privacy Mask,Flip,Rotate,,OSD overlay

Encode

Video Standard

H.264/H.265

Video Resolution

MainStream:30fps@8MP(3840x2160)/6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.

Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.

Third stream:1080P/720P/CIF@10fps

Video Bitrates

512Kbps - 12Mbps, VBR/CBR

Audio Standard

G.711-u/G.711-a/AAC

Built-in Mic

Optional

Built-in Speaker

N/A

SD card slot

Optional

OSD Overlay

Title and Time overlay ,custom color adjustable

IR Led

IR Led

4pcs IR Array Leds

IR Distance

70-80 M

Lens

Focal length

HD 2.7-13.5mm manual varifocal lens



Language

English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese,  Russian, Ukrainian, Persian.

Network Services

Protocol

HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.

P2P

Yes

Web

IE , Firefox,Edge, Google Chrome etc.

Media

CMS, Android, IOS

ONVIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps, POE

Power Supply

12 VDC ± 10%,POE

Power Consumption

< 8 W

Operating Temp.

-30-(+60), 10%-90%RH
