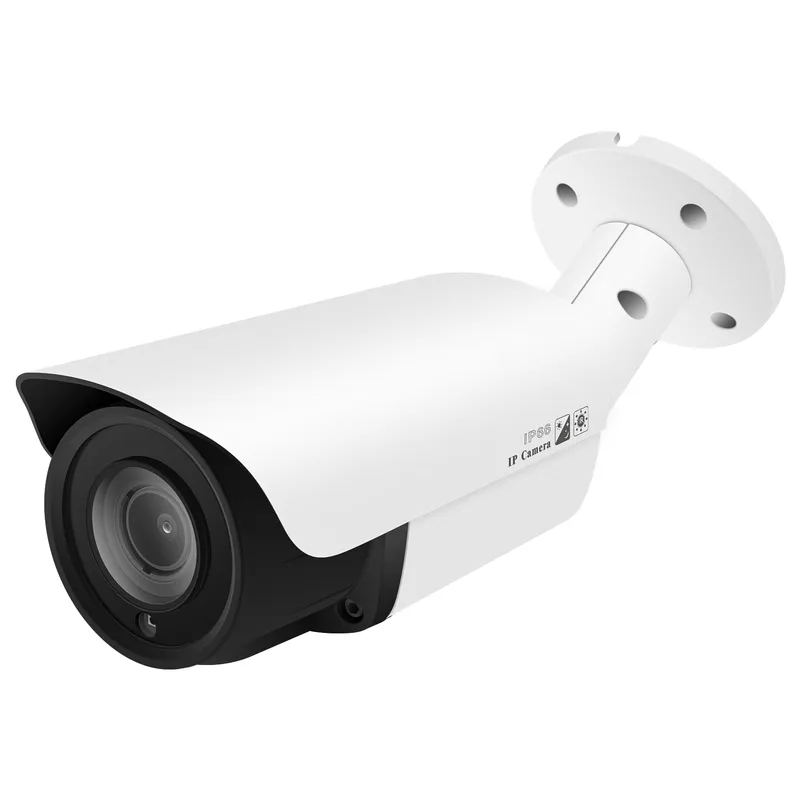

Model | HZX-IPQ103-4K-HE |
Camera | |
Image Sensor | 1/2.8" Sony CMOS |
Effective Pixels | 8 megapixels |
Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
Day/Night | Auto/Color/(B/W)/Timing |
WDR | Digital WDR |
White Balance | Auto/Manual |
BLC /HLC | Support |
DNR | 2D/3D DNR |
License Plate Mode | Yes |
Other | Human body and Vehicle detection,AGC,Motion Detection,Privacy Mask,Flip,Rotate,,OSD overlay |
Encode | |
Video Standard | H.264/H.265 |
Video Resolution | MainStream:30fps@8MP(3840x2160)/6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. Third stream:1080P/720P/CIF@10fps |
Video Bitrates | 512Kbps - 12Mbps, VBR/CBR |
Audio Standard | G.711-u/G.711-a/AAC |
Built-in Mic | Optional |
Built-in Speaker | N/A |
SD card slot | N/A |
OSD Overlay | Title and Time overlay ,custom color adjustable |
IR Led | |
IR Led | 20pcs SMD IR Leds |
IR Distance | 30-40 M |
Lens | |
Focal length | HD 2.7-13.5mm manual varifocal lens |
Language | |
English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian. | |
Network Services | |
Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
P2P | Yes |
Web | IE , Firefox,Edge, Google Chrome etc. |
Media | CMS, Android, IOS |
ONVIF | 17.06 compatible |
General | |
Network Port | 1-RJ45, 100Mbps, POE |
Power Supply | 12 VDC ± 10%,POE |
Power Consumption | < 8 W |
Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
