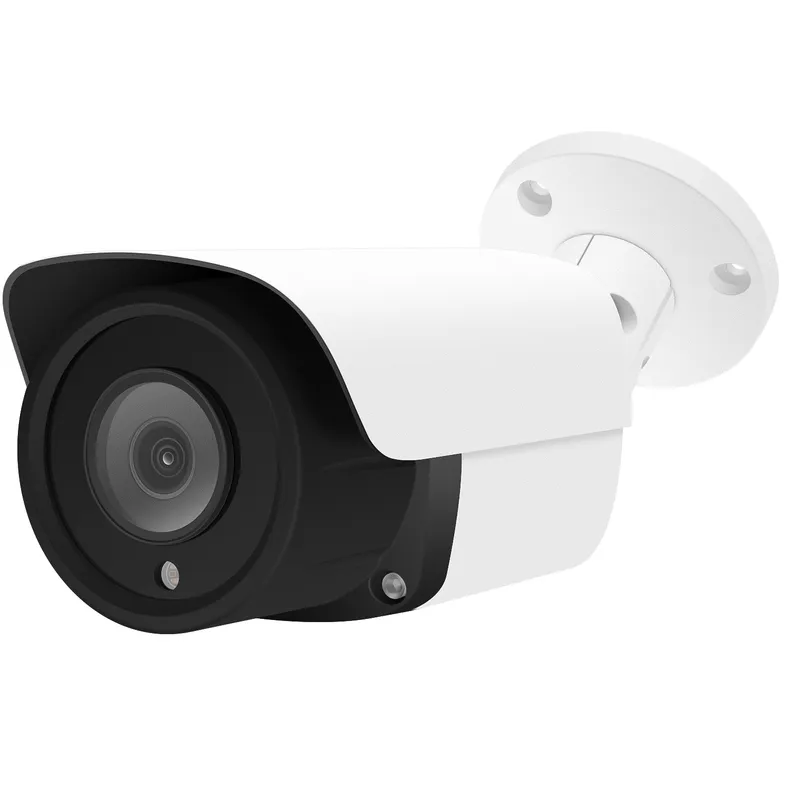

HZX-IPQ102-4K-HE

Camera

Image Sensor

1/2.8" Sony CMOS

Effective Pixels

8 megapixels

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.01Lux@F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

BLC /HLC

Support

DNR

2D/3D DNR

License Plate Mode

Yes

Other

Human body and Vehicle detection,AGC,Motion Detection,Privacy Mask,Flip,Rotate,,OSD overlay

Encode

Video Standard

H.264/H.265

Video Resolution

MainStream:30fps@8MP(3840x2160)/6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.

Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.

Third stream:1080P/720P/CIF@10fps

Video Bitrates

512Kbps - 12Mbps, VBR/CBR

Audio Standard

G.711-u/G.711-a/AAC

Built-in Mic

Optional

Built-in Speaker

N/A

SD card slot

N/A

OSD Overlay

Title and Time overlay ,custom color adjustable

IR Led

IR Led

18 pcs SMD IR Led

IR Distance

20-30 M

Lens

Focal length

HD 2.8/3.6 mm fixed lens optional,default in 3.6mm

Language

English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese,  Russian, Ukrainian, Persian.

Network Services

Protocol

HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.

P2P

Yes

Web

IE , Firefox,Edge, Google Chrome etc.

Media

CMS, Android, IOS

ONVIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps, POE

Power Supply

12 VDC ± 10%,POE

Power Consumption

< 8 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH
